Hydraulic pile-driving hammer

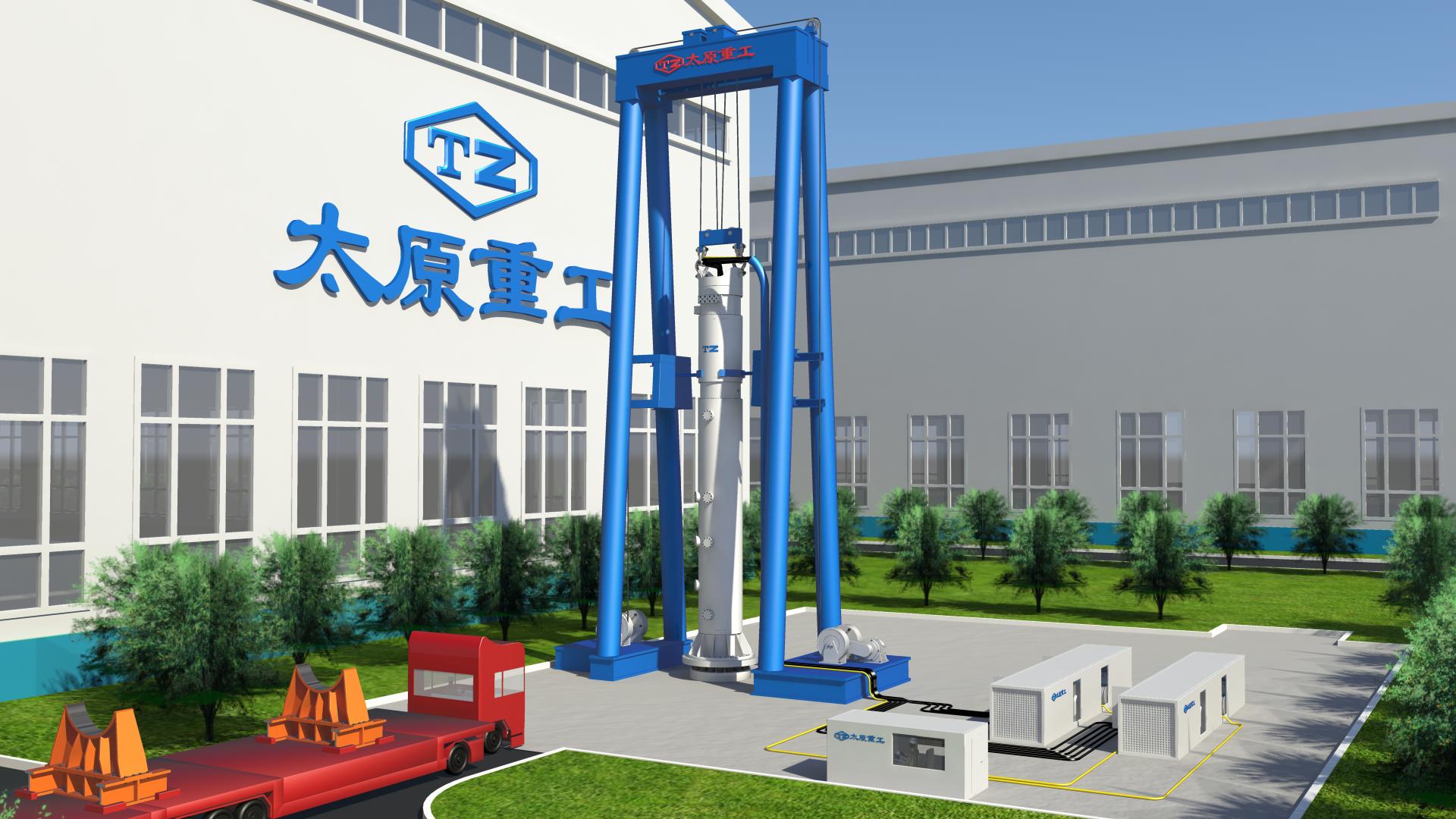

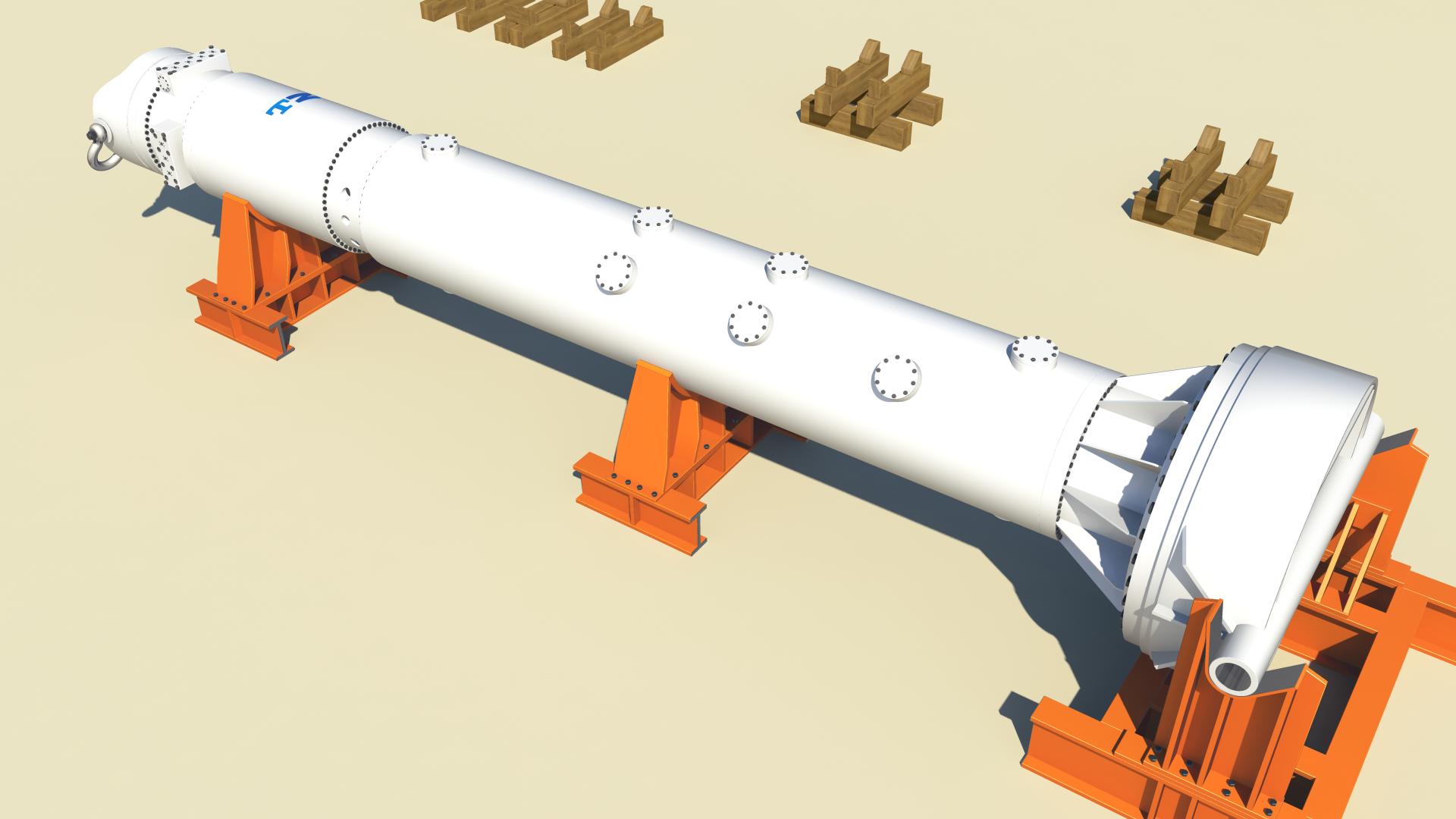

TZ series heavy duty and double-acting hydraulic pile-driving hammer is a key facility for pile construction. It is high efficiency, energy conservation, environment protection, easy operation and maintenance. Main structure consists of hammer body, hydraulic power station, electric control unit and etc.

  • Main models:TZ-200
  • Main models:TZ-500
  • Main models:TZ-800

  • Application

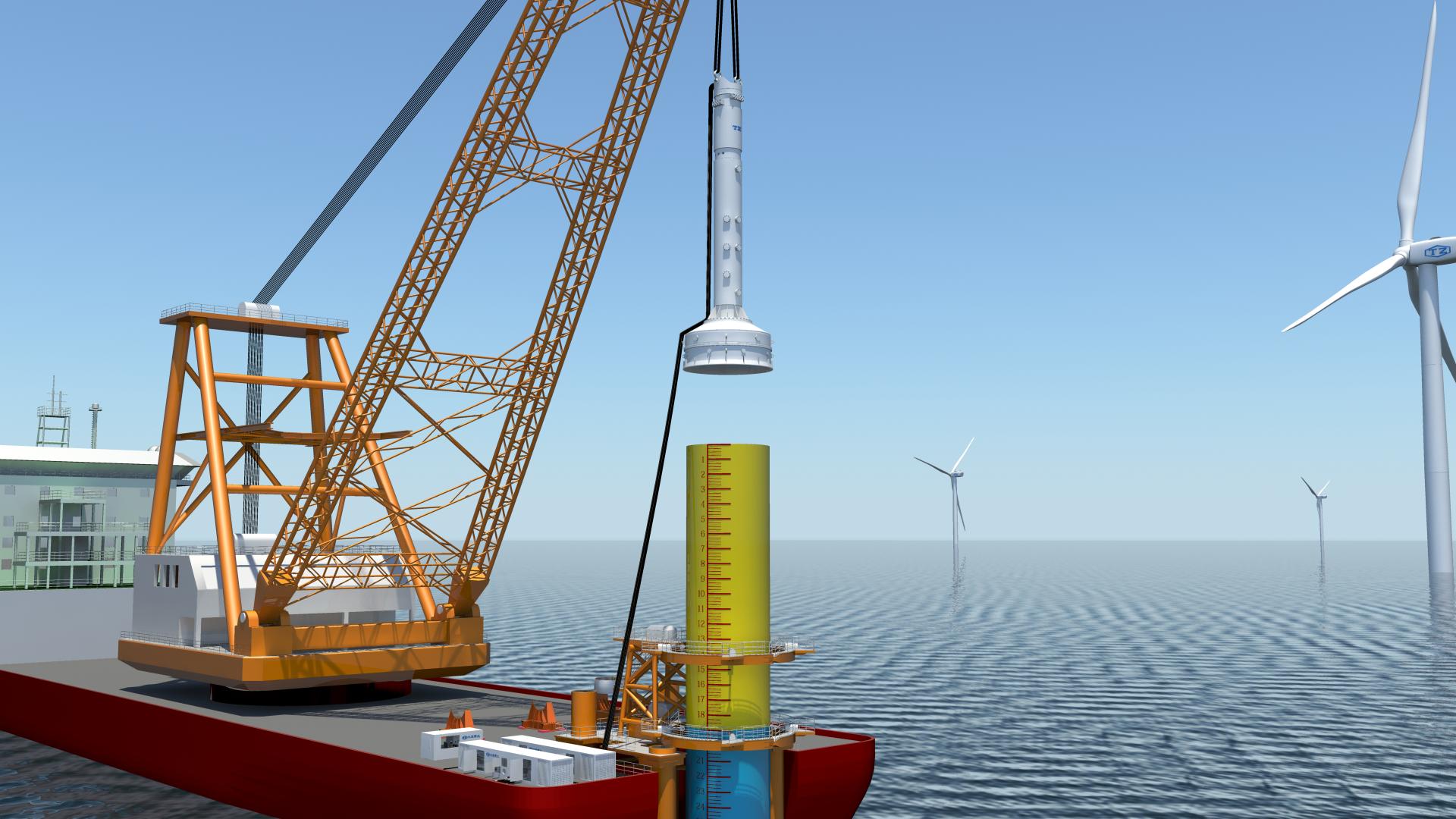

    Hydraulic pile-driving hammer has wide application in the foundation construction of bridge, port, offshore wind power and oil platforms as well as deep-sea structure installation. Along with the development of offshore mining and petroleum exploration, the hammer has large demand in future 20 years.

Features

Specification Parameters

Specification

TZ-200

TZ-500

TZ-800

TZ-1200

TZ-1600

TZ-1900

TZ-3000

TZ-3500

Min. energy（kJ）

20

50

80

120

160

190

300

350

Max. energy（kJ）

200

500

800

1200

1600

1900

3000

3500

Oil flow（L/min.）

870

1200

1600

2400

3200

3600

5400

6000

Max. frequency（bl/min）

32

32

32

30

28

25

25

22

Max. pile diameter（m）

1~2

1~3

2~5

3~5

3~6

3~6.5

5~8

5.5~8.5


Provide 1 unit TZ-200 hydraulic hammer for CCCC Harbor Engineering Co., Ltd; Provide 1 unit TZ-1900 hydraulic hammer for Shanghai Boqiang Machinery Manufacture Engineering Co., Ltd.

Patent situation

Hydraulic pile-driving hammer awarded 5 patents:

1. Multi-angle grip pile device and hydraulic pile-driving hammer multi-acting commissioning set (Patent No. ZL.2013 1 0394489.0);

2. Deep water hydraulic pile-driving hammer testing device (Patent No.ZL.2013 10409011.0);

3. Hydraulic pile-driving hammer variable-angle grip hammer device (Patent No. ZL.2013 1 0394567.7);

4. One type deep water Hydraulic pile-driving hammer (Patent No. ZL.201410128490.3);

5. One type deep water Hydraulic pile-driving hammer and its power device (Patent No. ZL.201410128489.0).
