High temperature gas cooled reactor Ground Car

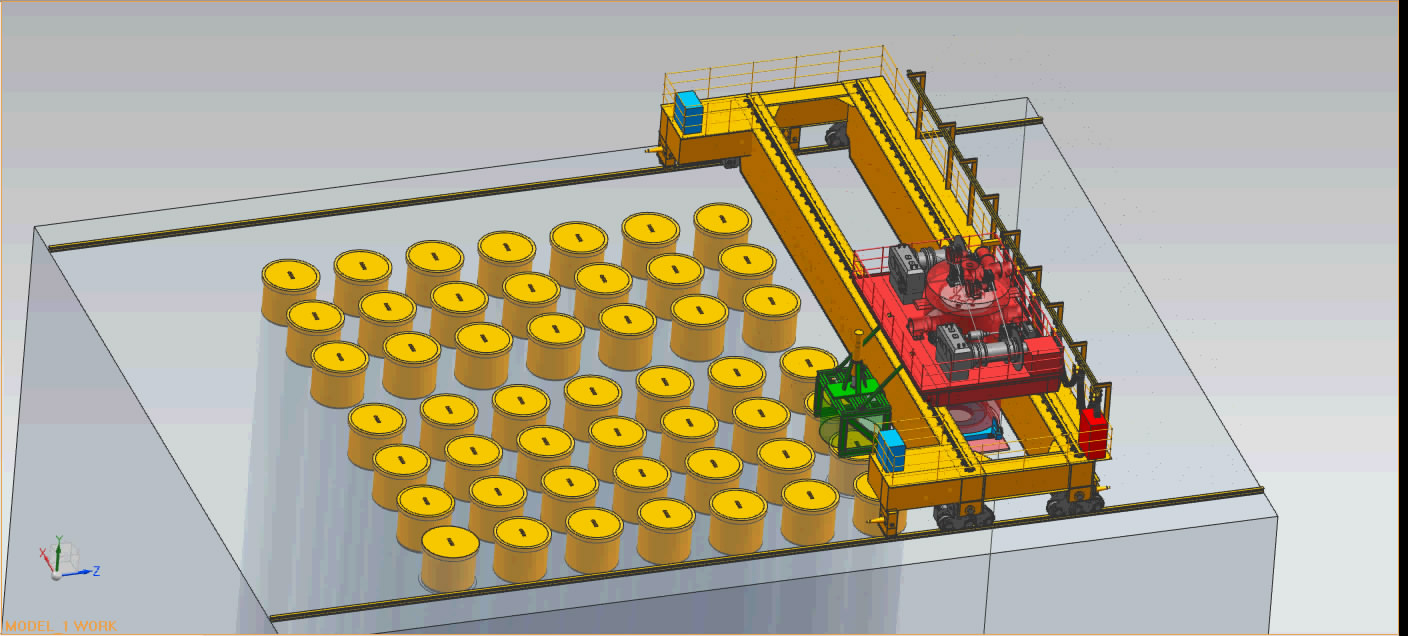

High-temperature gas-cooled reactor (HTGR) nuclear power plant adopts a new internationally recognized reactor with advanced technology, which is characterized by good inherent safety and high thermal efficiency. Ground car is important equipment in the spent fuel storage system of high temperature gas-cooled reactor demonstration power station, which is used for the storage of spent fuel when the reactor is running and the temporary storage of fuel elements when the core is emptied. The high-temperature gas-cooled reactor ground car has been equipped for the demonstration project of Shandong Shidaowan high-temperature gas-cooled reactor nuclear power plant.

  • Rated lifting capacity: 15t span: 23.6m
  • Lifting height: 29.3m
  • Application

    Transport and hoist the spent fuel storage tank in the shielding cover of the ground car into the designated shaft according to the instructions. When necessary, the spent fuel storage tank is hoisted out of the shaft according to the instruction, loaded into the shielded transfer tank through the transfer hoisting hole for internal and external transportation, or moved to the charging position to ...

Specification Parameters

Rated lifting capacity

15t

Span

23.6m

Lifting altitude

29.3m

Lifting speed

0.5-2m/min

Long travel

1.2-3.5m/min

Cross travel

1.2-3.5m/min

Positioning accuracy

±3mm
