Coal-fired flue gas desulfurization and denitrification project

TZCO has a professional R&D team for desulfurization and denitrification of coal-fired flue gas, covering the whole process of R&D, design, manufacturing and construction, and has the general contracting capacity for desulfurization and out-of-stock projects.

  • Processing capacity: 100,000 ~ 500,000 Nm³/h
  • NOx in the treated flue gas≤100mg/m³.
  • SO2 in the treated flue gas ≤20mg/m³.

  • Process Instruction

    The desulfurization and denitrification process of coke oven flue gas is mainly to reduce the content of nitrogen oxides, SO2 and particulate matter in the flue gas, so that the flue gas emission can meet the relevant national and local standards. The desulfurization and denitrification process of coke oven flue gas is mainly composed of flue gas system, desulfurization unit, denitrification unit, ...

Features

Specification Parameters

S.N.

Description

unit

parameter

remarks

1

1.5 million tons coke oven

group

1

Take 300,000 Nm³/h as an example.

2

Flue gas quantity

Nm³/h

≤300000

3

Flue gas temperature of waste heat boiler

℃

220-340

4

Inlet SO2 concentration mg/Nm³

mg/Nm³

≤200

5

Outlet SO2 concentration

mg/Nm³

≤20

6

Inlet NOx concentration mg/Nm³

mg/Nm³

＜1500

7

Outlet NOx concentration

mg/Nm³

＜100

8

Inlet particulate matter concentration

mg/Nm³

100

9

Outlet particle concentration

mg/Nm³

10

10

Total flue suction

Pa

-700

11

chimney height

米

145

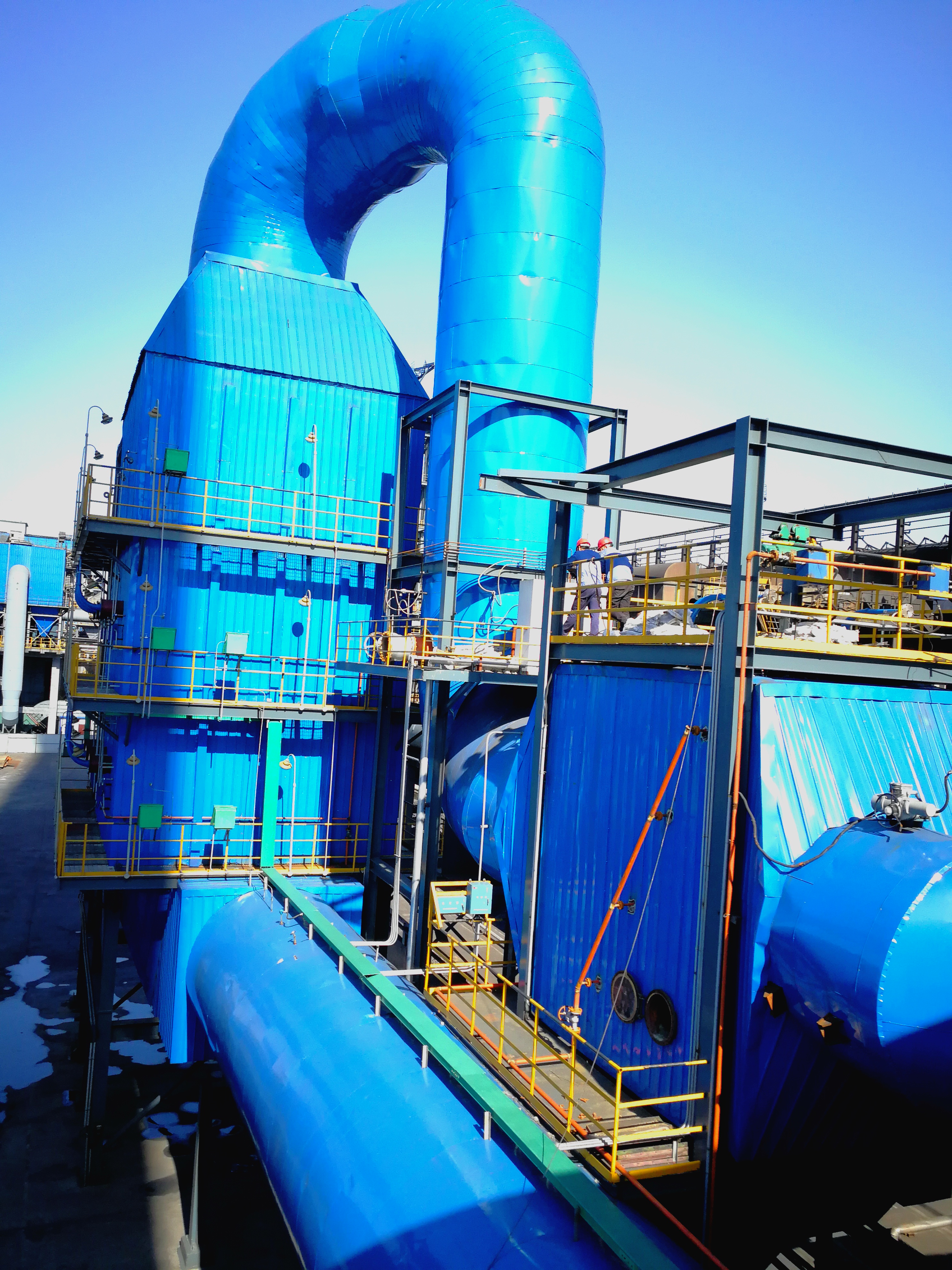

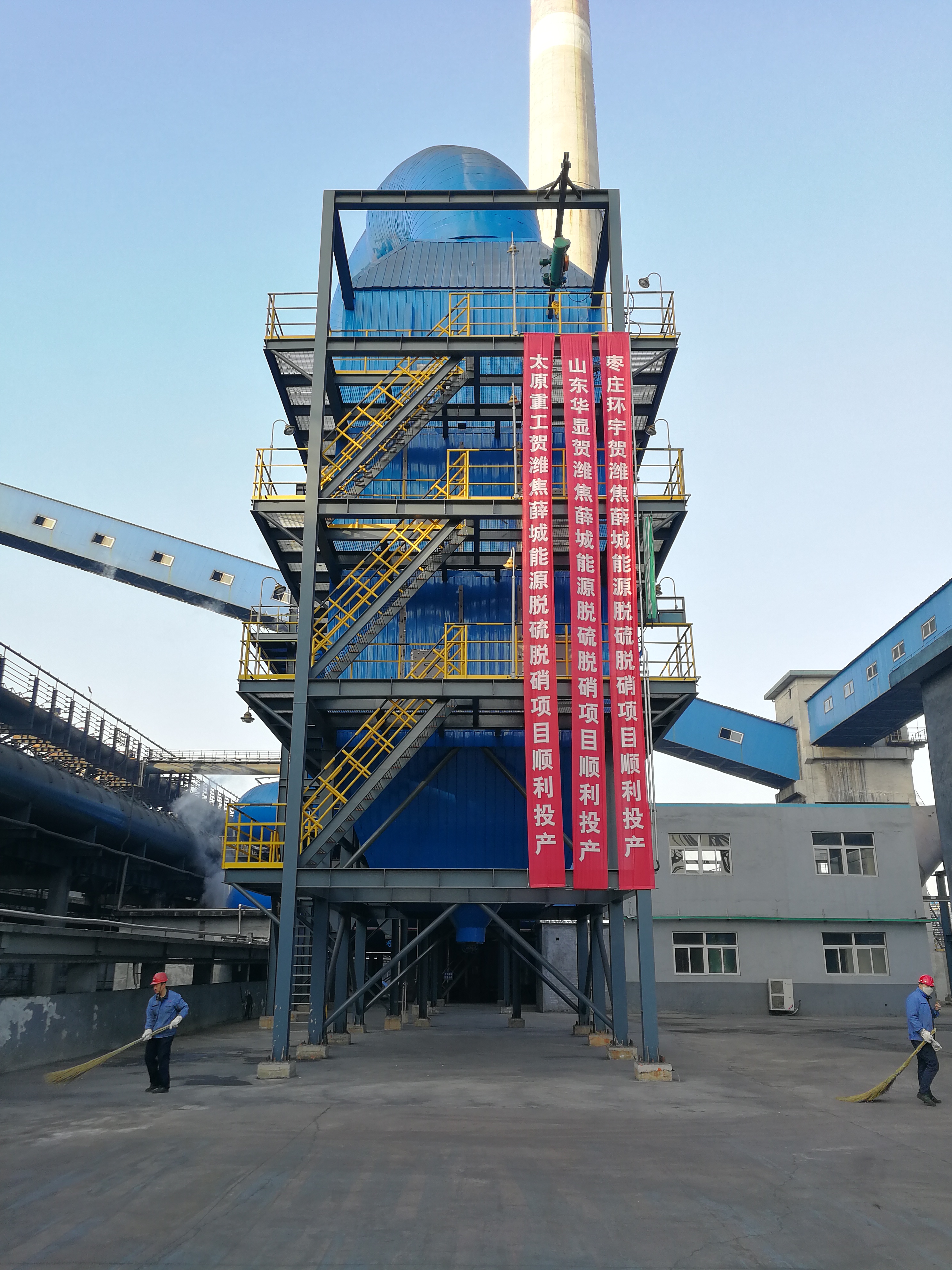

In 2017, the general contracting project of desulfurization, denitrification and dust removal project of Xuecheng Energy Co., Ltd. of Shandong Weijiao Group was contracted. The project was put into use in December 2017, and the condition was good.
