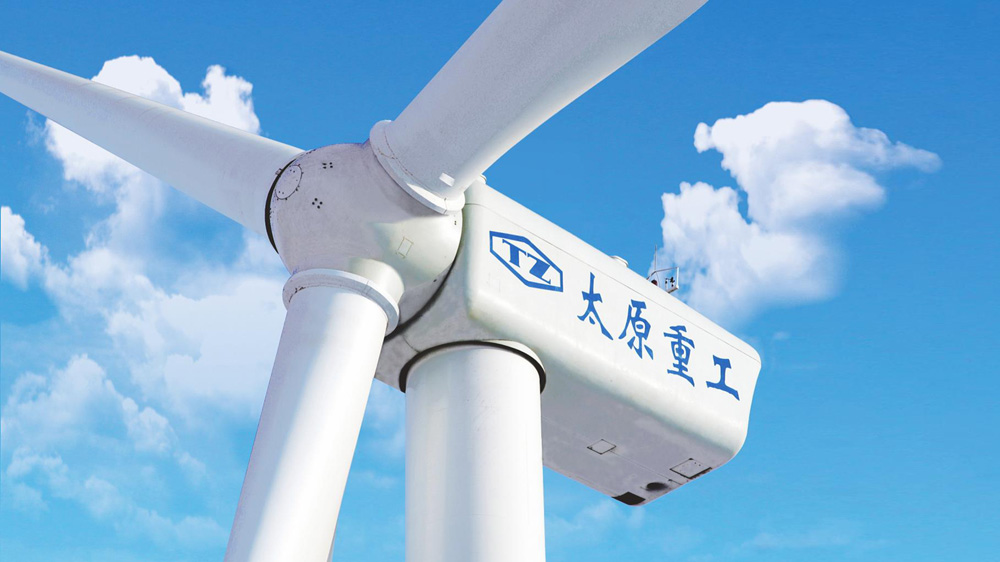

TZ6000 wind turbine set

TZ6000 series wind turbine is a three-blade, wind-oriented, horizontal axis grid-connected wind turbine with the following main characteristics: variable speed and constant frequency, independent electric pitch, and automatic yaw. According to different wind resource conditions and user needs, different hub heights and electrical systems can be selected to meet the specific requirements of wind farms.

  • Rated power:6000kW
  • Wind wheel diameter:154m
  • Wheel height:100m
  • Application

    Full-power high-speed permanent magnet 6.0MW wind turbine, suitable for high temperature, low temperature, inland, coastal, intertidal zone, offshore, high altitude, low wind speed and other different wind resource areas, and can match different wind wheel diameters and hub heights according to the wind resource conditions of the wind farm.

Specification Parameters

Model

rated power
(kW)

wheel diameter
(m)

hub height
(m)

cut-in wind

speed(m/s)

rated wind
speed (m/s)

cut-out wind speed (m/s)
(10 minutes average)

extreme (survival) wind
speed (3 seconds maximum, m/s))

TZ6000/154

6000

154

100

3

12

25

70


Certificates

The TZ series wind power generation machines produced by our company have all obtained the design evaluation certificate of China Classification Society.

Related Solutions

  • TZF4500 series wind turbine

    Rated power:
    4500kW
    Wind wheel diameter:
    155-185m
    Wheel height:
    100-120m
  • TZF5600 series wind turbine

    Rated power:
    5600kW
    Wind wheel diameter:
    171m
    Wheel height:
    105-110m
  • TZ1500 wind turbine set

    Rated power:
    1500kW
    Wind wheel diameter:
    77m~100m
    Wheel height:
    70m~90m
  • TZ2000 wind turbine set

    Rated power:
    2000kW
    Wind wheel diameter:
    87m~120m
    Wheel height:
    70m~90m
