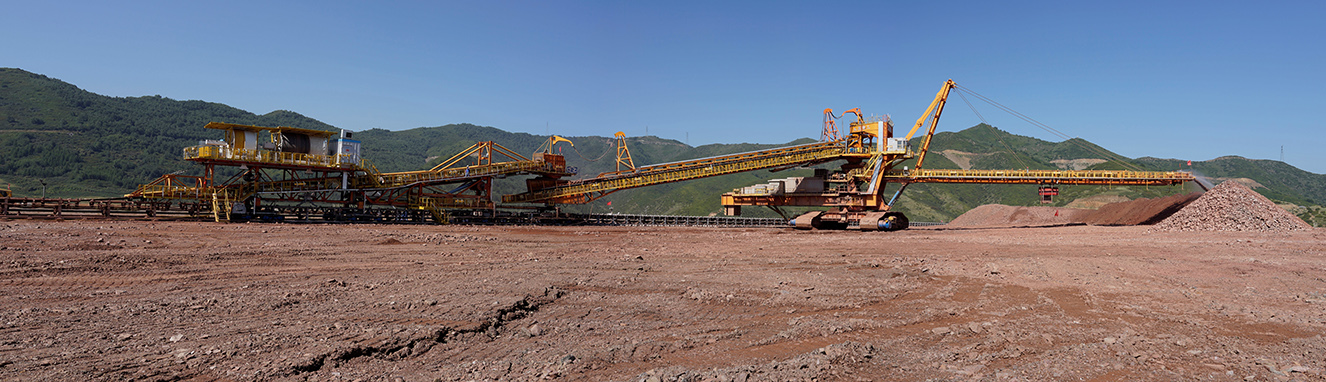

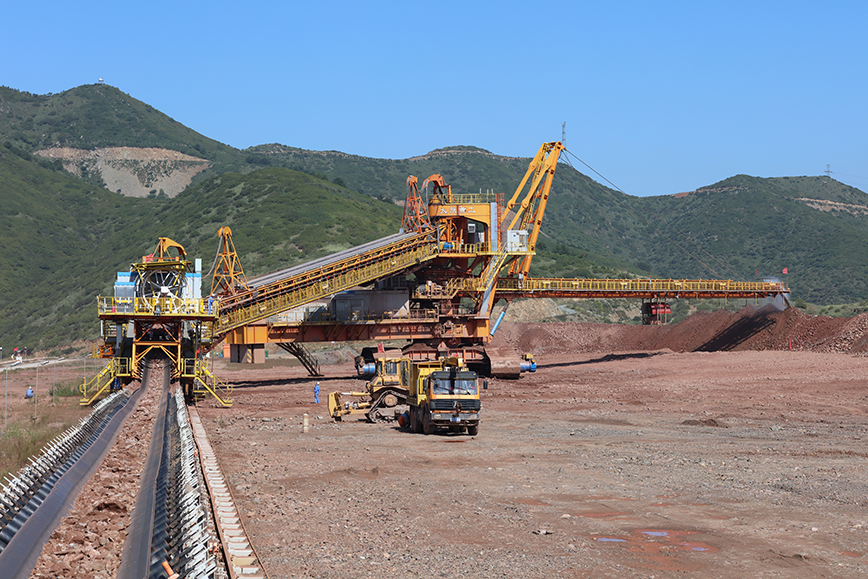

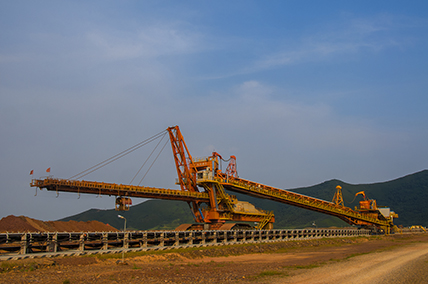

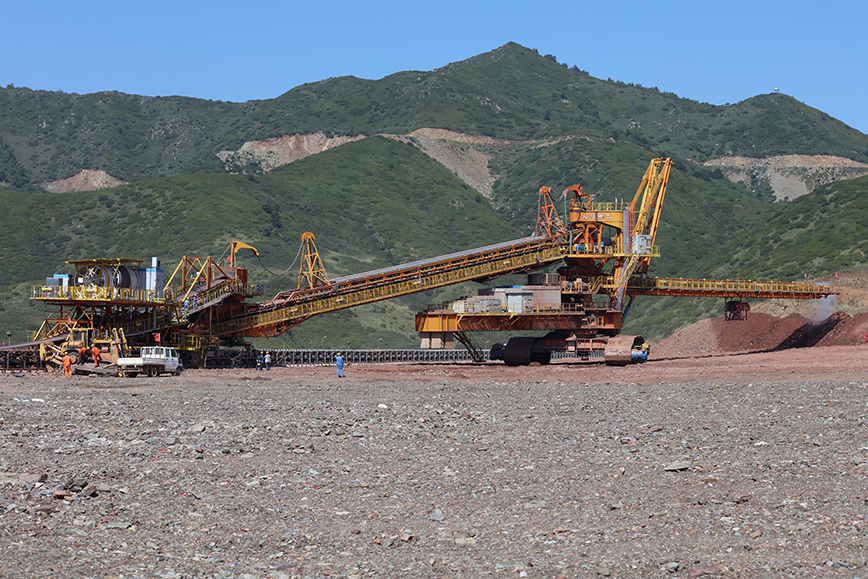

2000-12000t/h double-roller self-moving crushing station

The self-moving crushing station system is a super heavy-duty open-pit coal mine crushing equipment developed by our company. The system is used for the crushing of peels and gross coal from open-pit coal mines above 10 million tons. The double-roller self-moving crushing station is suitable for the process of single-bucket excavator-self-moving crusher+integrated connecting bridge+cable funnel truck-belt conveyor. Without the need for temporary support, the material can be accepted directly from the hydraulic shovel excavators or electric shovel excavators, and the overall free movement can be achieved, with better material receiving stability and mobility flexibility.

Rated capacity:2000t/h～12000t/h
Feeding particle size:0～2000mm
Discharge particle size:0～450mm

Contact Information
Contacts: Li Ji, Cao Jian Liang

Telephone: 18636971205, 13834699142

Email: liji@tz.com.cn

Application
Features
Parameters

Application

The self-moving crushing station is used for the primary crushing of raw coal and peels from large open-pit mines above 10 million tons, and is suitable for the transportation process of single-bucket excavator-self-moving crushing station-belt machine. The double-roller self-moving crushing station mainly includes equipment such as a self-moving crusher, an integrated connecting bridge (or reprinting ...

Features

1st

Adopt intelligent control and real-time monitoring

The whole machine adopts energy management technology. 3D position and attitude monitoring technology of the whole machine based on GPS, position sensors, angle sensors and laser scanning sensors to achieve automatic alignment of the discharge belt machine with the free reproduction point of the cable funnel workshop. Real-time monitoring to achieve fault alarm and self-diagnosis.
2nd

World-class supplier of accessories

The inverter and control system use ABB or Siemens products; the reducer, coupling and brake are all purchased from world-class supporting equipment manufacturers; the bearing made of SKF, FAG or TIMKEN brands, all imported original products.
3rd

The crusher has low energy consumption and high life span

Low speed and high torque reduce the degree of over-crushing in the crushing process and minimize energy consumption; low speed, low operating inertia of the crushing roller, and high reliability; it can be started at full load and reversed after crossing the iron, eliminating the need for manual digging and discharging of materials, and avoiding damage to downstream equipment by non-shatterable objects....
4th

Compact structure and high stability

No auxiliary support is required for operation, and it has better stability when walking with materials than similar foreign products; compared with foreign crushing stations of the same level, the dimensions are more compact and the center of gravity is lower.

Specification Parameters

Rated capacity (t/h)	Feeding particle size (mm)	discharging particle size (mm)	Receiving hopper effective volume(m³)	Crusher model	motor power (kW)	Plate feeder center distance (mm)	Crawler device power (kW)	Average working specific pressure (kPa)	Climbing ability(°)
9000	0～2000	0～400	225	16/ 350CCTD	2×630	20250	2×425	<240	10
7500	0～2000	0～400	165	13/ 300CCTD	2×480	20250	2×425	<240	10
4500	0～2000	0～400	105	11/ 300CCTD	2×350	20250	2×425	<240	10
3000	0～1500	0～300	105	11/ 220CHD	355	20250	2×425	<240	10
