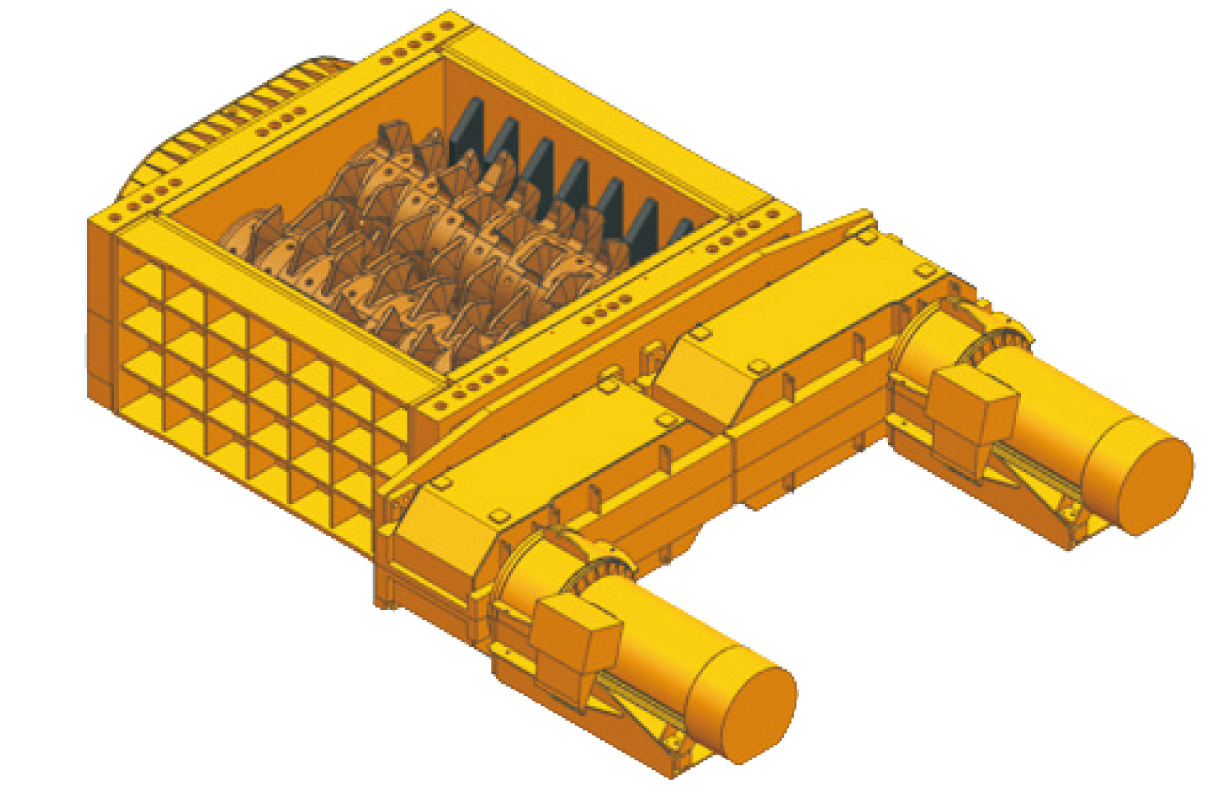

2000-12000t/h double-roller crusher

TZ900/TZ1100/TZ1300/TZ1600double-roller crusher is a primary crusher developed by our company for the majority of mine users. It is suitable for the crushing equipment of open-pit mines developed by our company-semi-mobile crushing stations or self-moving crushing stations, which are suitable for large-scale open-pit mines above 10 million tons of raw coal and peelings.The primary is broken. The mechanical part of a double-roller crusher is composed of a crusher body, a crushing roller, a reducer, a hydraulic coupling, and a motor.

  • Processing capacity:2000t/h～12000t/h
  • Feeding particle size:0～2000mm
  • Discharge particle size:0～450mm
  • Contact Information
    Contacts: Li Ji, Cao Jian Liang

    Telephone: 18636971205, 13834699142

    Email: liji@tz.com.cn

  • Application

    The double-roller crusher is a primary crusher developed by our company for mine users. It is suitable for the crushing equipment of open-pit mines developed by our company-semi-mobile crushing stations or self-moving crushing stations, which are used for the primary crushing of raw coal and peelings in large open-pit mines above 10 million tons. It is suitable for single-bucket excavators-self-moving ...

Features

Specification Parameters

Specification parameters

Model

The maximum feeding particle size of the model

(mm)

the maximum discharge particle size

(mm)

the maximum processing

capacity (t/h)

the dimensions

(mm)

the installed power(kW)

the weight of the whole machine(t)

TZ900

1000

200～300

2200～3500

6853X2884X1100

350

60

TZ1100

1200

300～450

2500～4000

7428X3490X1400

2X250

90

TZ1300

1500

300～450

4000～6000

8429X3690X1800

2X350

120

TZ1600

1800

300～450

9000～12000

8685X6500X2000

2X630

190
