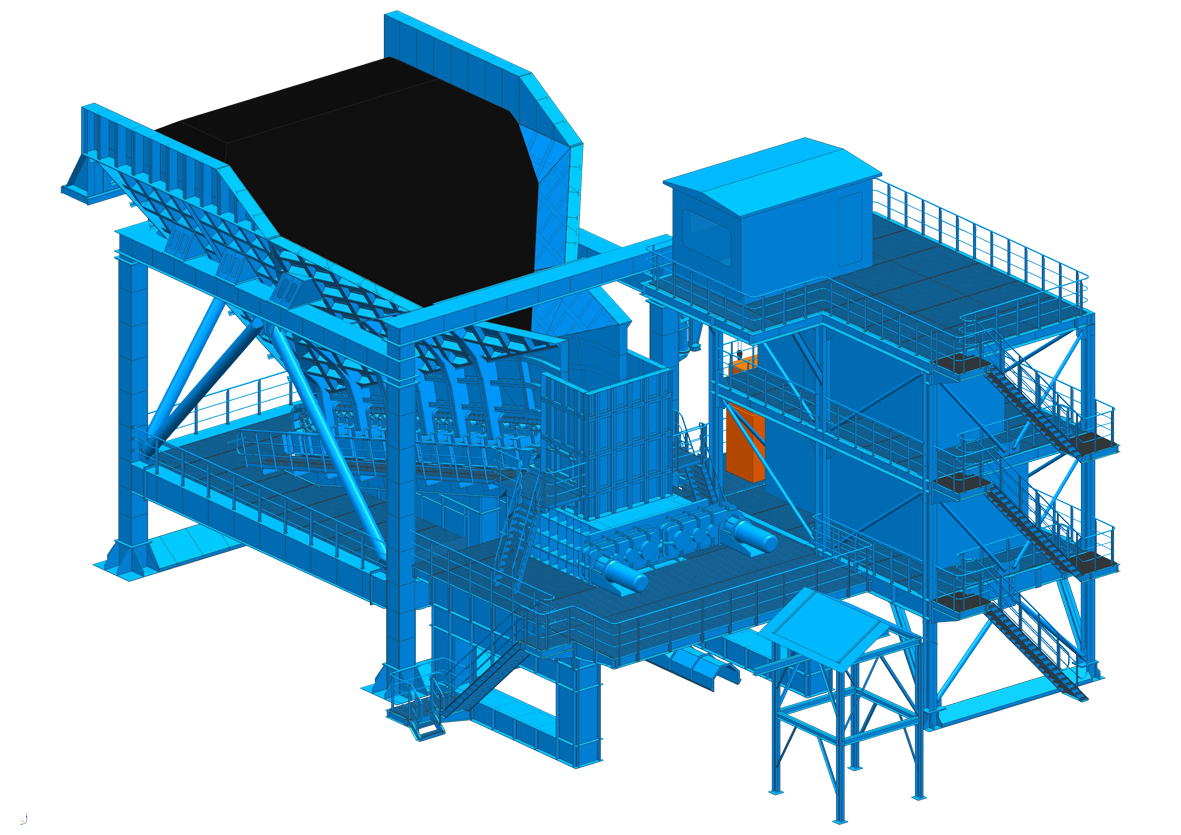

2000-12000t/h double-roller semi-mobile crushing station

The double-roller semi-mobile crushing station is used for crushing and stripping equipment of medium-hardness or viscous soft materials, and is suitable for heavy-duty trucks-semi-mobile crushers-belt conveyor processes. The semi-mobile crushing station adopts a modular design, and can be moved by crawler transporter or dragged by a large soil extractor.

  • Rated capacity: 2000t/h～12000t/h
  • Feeding particle size: 0～2000mm
  • Discharge particle size: 0～450mm
  • Contact Information
    Contacts: Li Ji, Cao Jian Liang

    Telephone: 18636971205, 13834699142

    Email: liji@tz.com.cn

  • Application

    Double—tooth roller semi—mobile crushing stations are used for the primary crushing of raw coal and peelings in large open—pit mines above 10 million tons. The mining technology is generally single-bucket excavator-transportation vehicle-semi-mobile crushing station-tape machine. Using the flexibility of automobile transportation, the transportation distance of automobiles is shortened, and the ...

Features

Specification Parameters

Specification parameters

Rated capacity

(t/h)

Feeding particle size(mm)

discharging particle size(mm)

Installed power(kW)

Unloading platform position

Receiving hopper effective volume(m3)

Crusher model

motor power(kW)

Plate feeder center distance

(mm)

9000

0～2000

0～400

2710

2

500

16/ 350CCTD

2×630

14600

7000

0～2000

0～400

2100

2

300

13/ 300CCTD

2×355

14800

4500

0～2000

0～400

1670

2

220

11/ 300CCTD

2×355

14700

3000

0～1500

0～300

1165

2

220

11/ 220CHD

355

14700
