1500-10000t/h rotary crusher

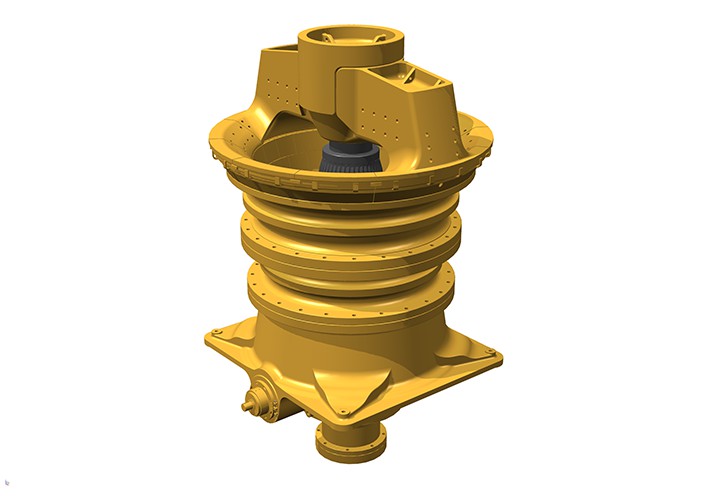

TZ1070-1650/TZ1370-1900/TZ1530-2260/TZ1530-2800 rotary crusher is a newly developed primary crusher by our company for the majority of mine users, supporting the super heavy open-pit metal mine crushing equipment developed by our company-semi-mobile crushing station, used for ore in metal mines of tens of millions of tons and above. And the primary crushing of hard rock.

  • Feeding particle size:0~1400mm
  • Discharge particle size:0~400mm
  • Contact Information

    Contacts: Li Ji, Cao Jian Liang

    Telephone: 18636971205, 13834699142

    Email: liji@tz.com.cn

  • Application

    Rotary crusher is used for the primary crushing of ore or rock in large open-pit metal mines, crushing large pieces of material after blasting or excavation into a particle size that meets the transportation of the belt machine, with a processing capacity of 1500t/h-10000t/h.

Specification Parameters

Specifications

Feeding port

(mm)

moving cone bottom diameter

(mm)

pinion speed

(rpm)

maximum power

(KW)

loose edge ore discharge port(mm)



140mm

150mm

165mm

175mm

190mm

200mm

215mm

230mm

240mm

250mm

TZ1070-1650

1070

1650

600

375

2010

2375

2510

2870



TZ1370-1900

1370

1900

450

450



2550

2860

3030

3200

3400



TZ1530-2260

1530

2260

600

600



4150

4400

4800

5000

5300

5600



TZ1530-2800

1530

2800

515

1200



5580

5850

6100

6500

6900

7200

7600
