The semi—mobile rotary crushing station is a key equipment in the semi—continuous mining process (single—bucket excavator-automobile-crushing station-belt conveyor system). It is used for the primary crushing of ore or rock in large open-pit metal mines. The large materials after blasting or excavation are crushed by the crusher into a size that meets the transportation of the belt conveyor.
It is used for the primary crushing of ore and rocks in metal mines of tens of millions of tons and above, and is suitable for the transportation process of transportation vehicles,semi-mobile crushing stations,and tape machines.
It has a perfect health management system, which can monitor the health status of the entire life cycle of the equipment, so as to avoid "over-maintenance" leading to waste of resources and "under-maintenance" leading to equipment failure.
The complete equipment of the crushing station adopts a modular design to facilitate the transportation and installation of the equipment and meet the requirements of the overall or split movement of the equipment.
The intelligent control system is adopted to meet the needs of energy-saving and efficient mining; a dust suppression system is provided to meet the requirements of green mining; the semi-continuous mining process of a semi-mobile crushing station is adopted, which has the characteristics of low transportation cost and high transportation efficiency.
The static and dynamic finite element analysis of the main steel structure of the series of crushing stations is carried out to ensure that the equipment is suitable for comprehensive and complex working conditions such as plateau, low temperature, heavy load, and impact.
Specification parameters
Ratedprocessing capacity of crushing station(t/h)
Feeding particle size(mm)
discharge particle size(mm)
Crusher motor power(kW)
Tape machine width(mm)
belt speed(m/s)
Tape machine motor power(kW)
Maximum working radius(m)
Maximum crushing Depth(m)
Jib lifting capacity(main/auxiliary)(t)
8500
0～1400
0～350
1200
2800
0.5～2.1
690
16.56
11.4
120/20
6100
0～1300
0～300
600
2400
500
80/20
3580
0～1200
0～250
450
2000
0.5～1.8
200
12
9
50/10
1500
0～900
0～200
375
0.5～1.2
160
11
7.7
30/5
Main performance
Serial number
Product name
Quantity
User
1

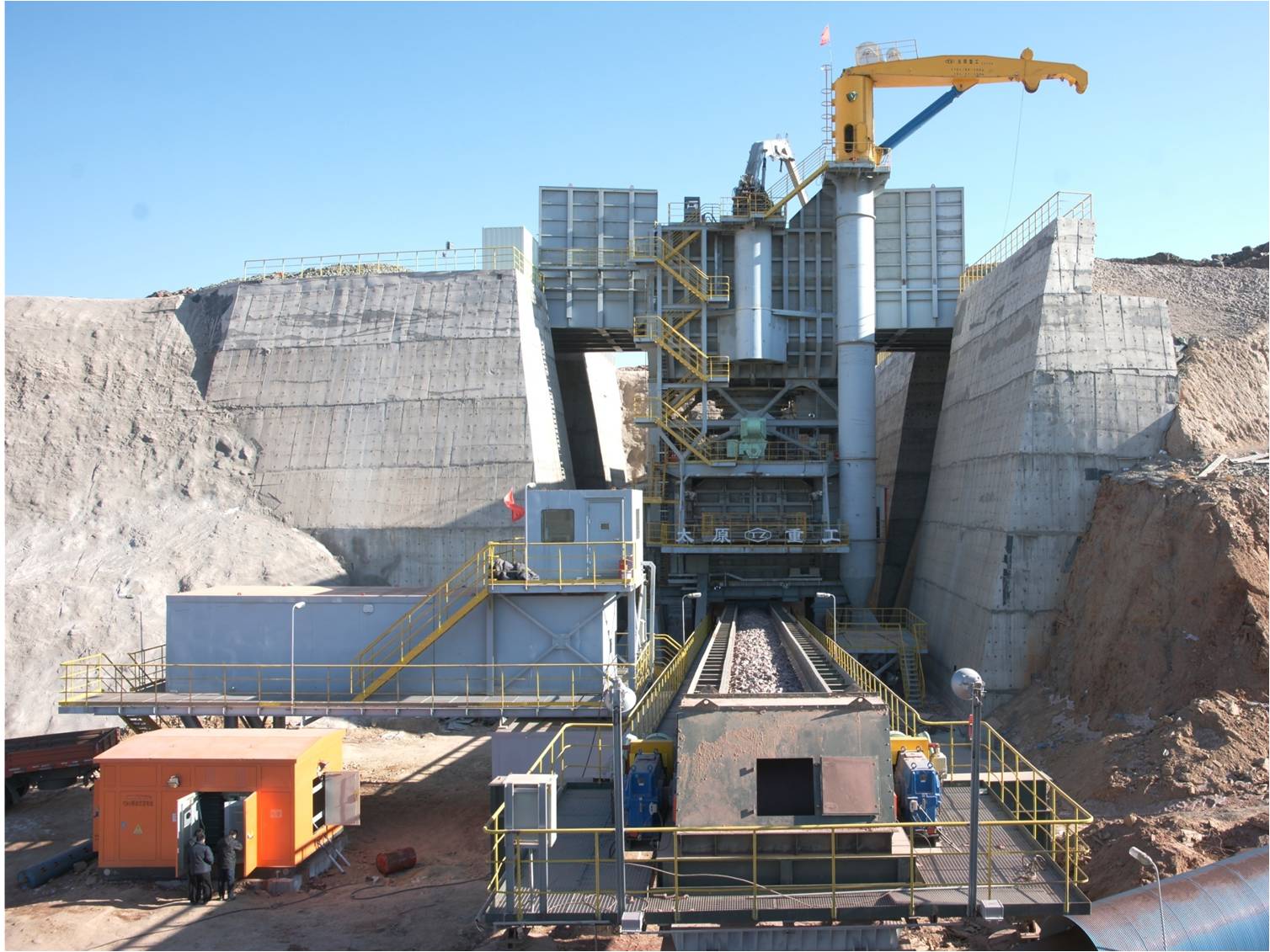

60-110E Semi-mobile crushing station
2sets
Taigang Yuanjiacun Iron Ore Mine
2
60-89 Semi-mobile Crushing Station
1set
Pangang Baima Iron Ore
3
60-110E Semi-mobile Crushing Station
4sets
Tibet Julong Copper Industry Co., Ltd.
4
42-65 Semi-mobile Crushing Station
Xinjiang GuangHui kunlun Mining Co., Ltd.
