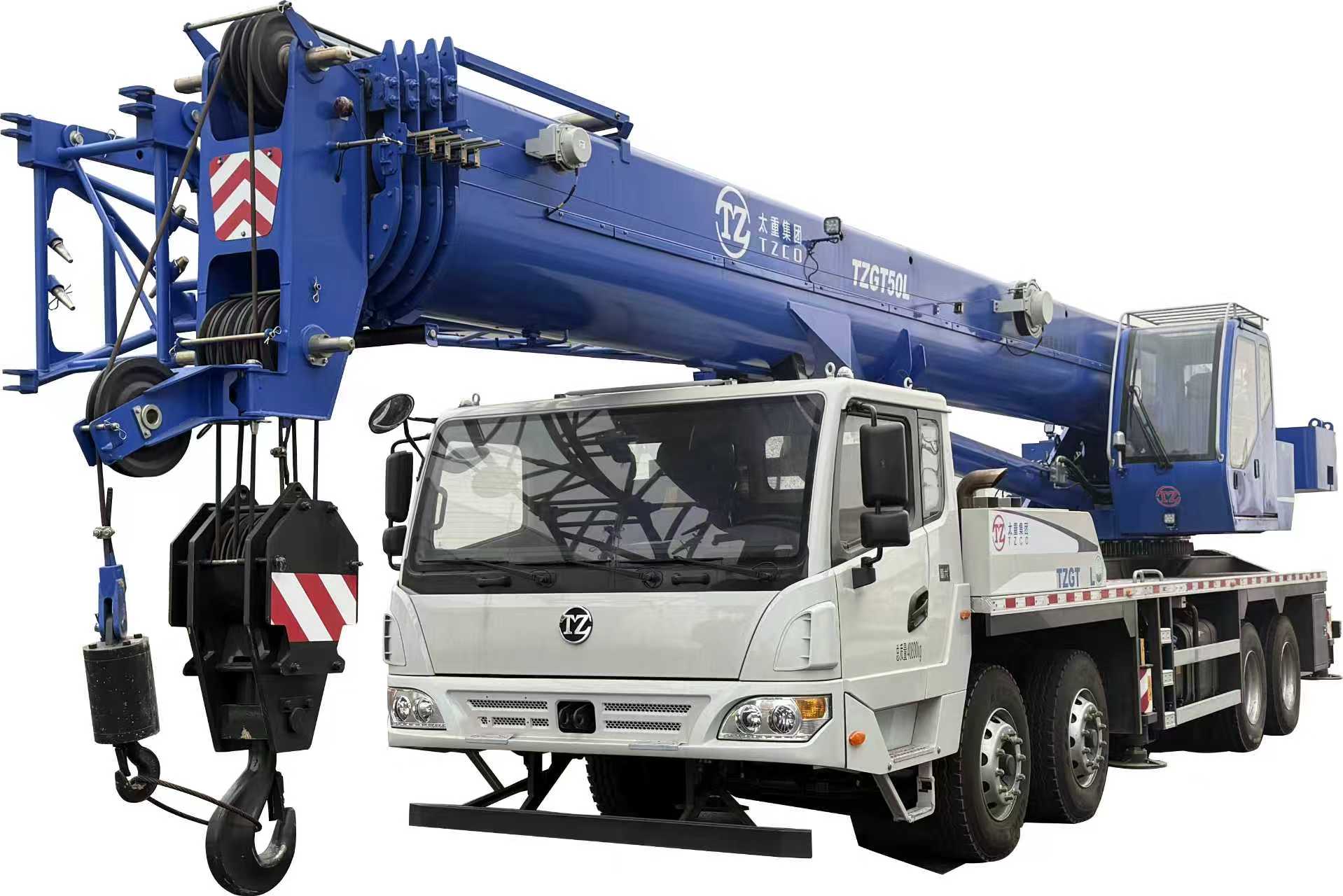

Truck Crane

TZCO has independently developed, designed and manufactured a series of truck cranes with a maximum lifting capacity of 12-130 tons. The product adopts independent integrated control system and telescopic boom force limiter system, which makes the operation safer and more reliable; it adopts fully electronically controlled hydraulic system, high-flow double variable piston pump, load-sensitive + pressure cut-off system, which makes the operation highly efficient, energy-saving and environmentally friendly; the brand-new maneuvering room is designed to be high-end and comfortable, and it is equipped with a tilt function; it is the first to comprehensively lay out the new energy models, and the pure electric power, The first comprehensive layout of new energy models, pure electric, oil-electric hybrid, methanol, alcohol-electric hybrid, hydrogen power of a variety of new energy models can be customized to meet the new energy model needs of users in different regions.

  • Maximum Lifting Capacity:12t~130t
  • Maximum Lifting Torque:550 kNm~5700 kNm

  • Application

    Truck crane is a kind of mobile crane mounted on a special chassis, with good mobility, can be quickly transferred, applicable to a variety of road driving. 12-130 tons truck crane is a general-purpose truck crane, which is widely used in the fields of municipal construction, plant construction, bridge construction, equipment repair and maintenance, and auxiliary installation of wind power.

Features

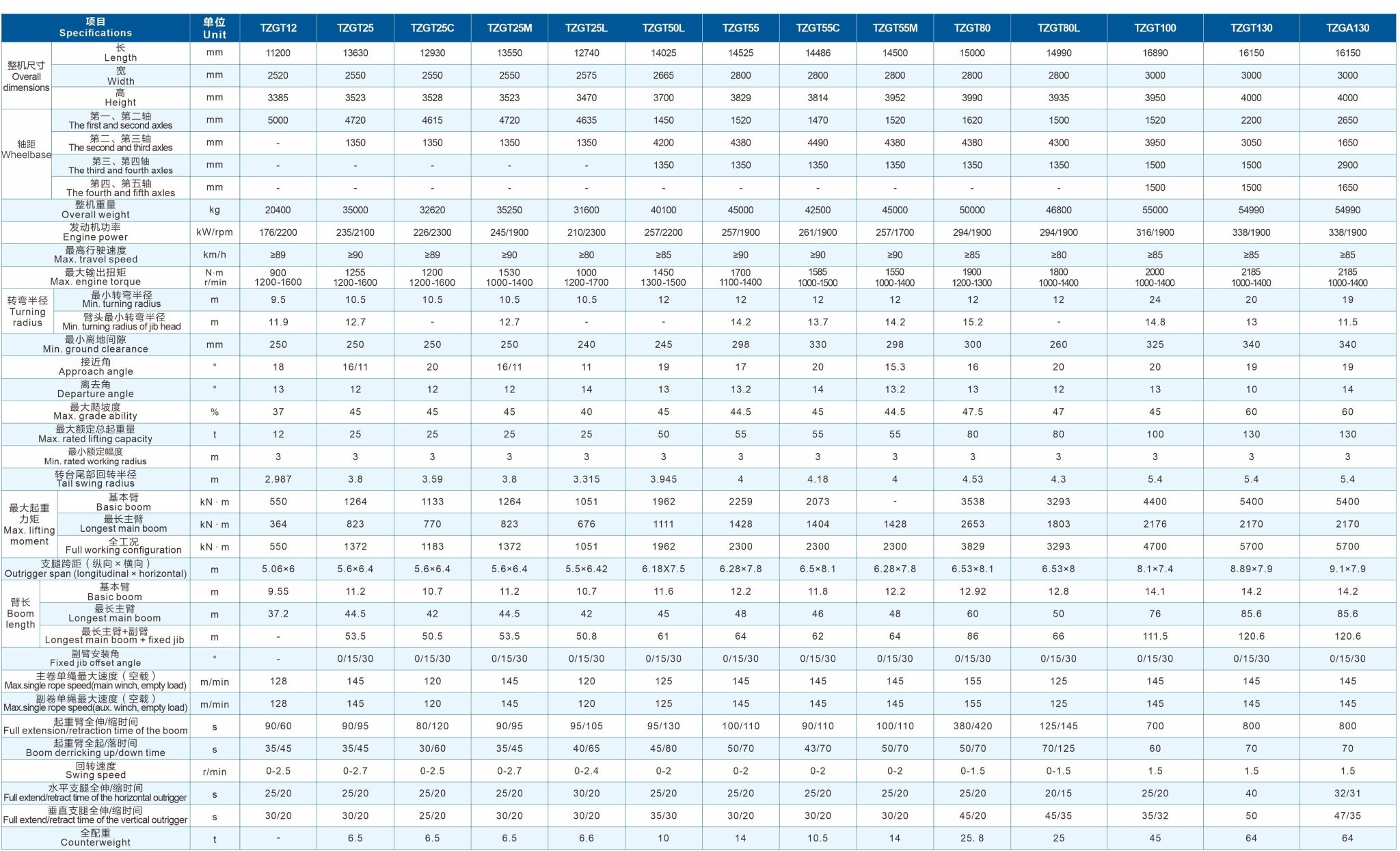

Specification Parameters


Item

Unit

TZGT12L5

TZGT25

TZGT25M

TZGT55

TZGT80

TZGT100

TZGT130

TZGA130

Dimension

Length

mm

11200

13630

13550

14500

15000

16065

16150

16150

Width

mm

2520

2550

2550

2800

2800

3000

3000

3000

Height

mm

3385

3523

3523

3952

3990

3950

4000

4000

Wheelbase

First and second axle

mm

5000

4720

4720

1520

1620

1520

2200

2650

Second and third axle

mm

-

1350

1350

4380

4380

3950

3050

1650

Third and fourth axle

mm

-

-

-

1350

1350

1500

1500

2900

Fourth and fifth axle

mm

-

-

-

-

-

1500

1500

1650

Weight

kg

20400

35000

35250

46000

50000

54900

54990

54990

Engine Power

kw/rpm

176/2200

235/2100

245/1900

257/1900

257/1900

316/1900

338/1900

338/1900

Maximum Travel Speed

km/h

89

90

90

90

85

85

85

80

Maximum Output Torque

N·m/r/min

900/1200-

1600

1300(1200-1600)

1530(1000-1400)

1700(1100-1400)

1785(1000-1400)

2000(1000-1400)

2200/1000

2200/1000

Turning Radius

Minimum Turning Radius

m

9.5

10.5

10.5

12

12

12

10

9.75

Minimum turning radius Turning radius

m

11.9

12.7

12.7

14.2

15.2

14.8

13

11.5

Minimum ground clearance

mm

250

250

250

300

300

325

360

335

Approach angle

°

15

16/11

16/11

19.2

18

20

20

19

Angle of Departure Braking

°

13

12

12

13.2

13

13

10

14

Distance (at 30km/h)

m

≤10

≤10

≤10

≤10

≤10

≤10

≤10

10

Maximum Gradient Climbed

%

37

45

45

44.5

45

45

60

60

Fuel consumption (methanol) per 100km

L

24

35

-

40

-

-

65

-

Maximum rated gross lifting capacity

t

12

25

25

55

80

100

130

130

Minimum rated reach

m

3

3

3

3

3

3

3

3

Turntable tail swing radius

m

2.978

3.8

3.8

4

4.53

5.4

5..4

5.4

Maximum lifting moment

Basic boom

kN·m

550

1264

1264

2256

3538

4400

5400

5400

Longest main boom

kN·m

364

823

823

1428

2653

2176

2170

2170

Full working condition

kN·m

550

1372

1372

2300

3829

4700

5700

5700

Outrigger span (longitudinal * transverse)

m

5.06*6

5.6*6.4

5.6*6.4

6.28*7.8

6.53*8.1

8.1*7.4

8.89*7.9

9.1*7.9

Boom length

Basic boom

m

9.55

11.2

11.2

12.2

12.92

14.1

14.2

14.2

Longest main boom

m

37.2

44.5

44.5

48

60

76

85.6

85.6

Longest main boom + jib

m

-

53.5

53.5

64

77.5

111

120

120

Jib mounting angle

°

-

0/15/30

0/15/30

0/15/30

0/15/30

0/15/30

0/15/30

0/15/30

Maximum speed of main reel single rope (unloaded)

m/min

128

145

145

145

155

135

135

135

Maximum speed of sub reel single rope (unloaded)

m/min

128

145

145

145

155

110

110

110

Boom full extension/retraction time

s

90/60

90/95

90/95

100/110

426/471

700

800

800

Boom full lift/lowering time

s

35/45

35/45

35/45

50/70

45

70

70

70

Slewing speed

r/min

0-2.5

0-2.7

0-2.7

0-2

0-1.61

1.5

1.5

1.5

Horizontal outrigger full extension/retraction time

s

25/20

25/20

25/20

25/20

25/20

30

30

30

ertical outrigger full extension/retraction time

s

30/20

30/20

30/20

30/20

37/20

40

40

40

Axle configuration



Handel

Handel

Handel

Handel

Handel

Meritor

Handel

Maximum Altitude



2000

2000

2000

2000

2000

2000

2000
